Twin screw plastic extruder machine SHJ52D TPR TPU Color masterbatch extruder machine line

SHORT DESCRIPTION:

This twin-screw plastic extruder is high torque and a high screw speed of 600rpm,

  • Product Detail
  • Our machine can process the following materials:
  • Product Tags

SHJ52D Twin Screw plastic extruder machine

HS CODE:  8477.2010

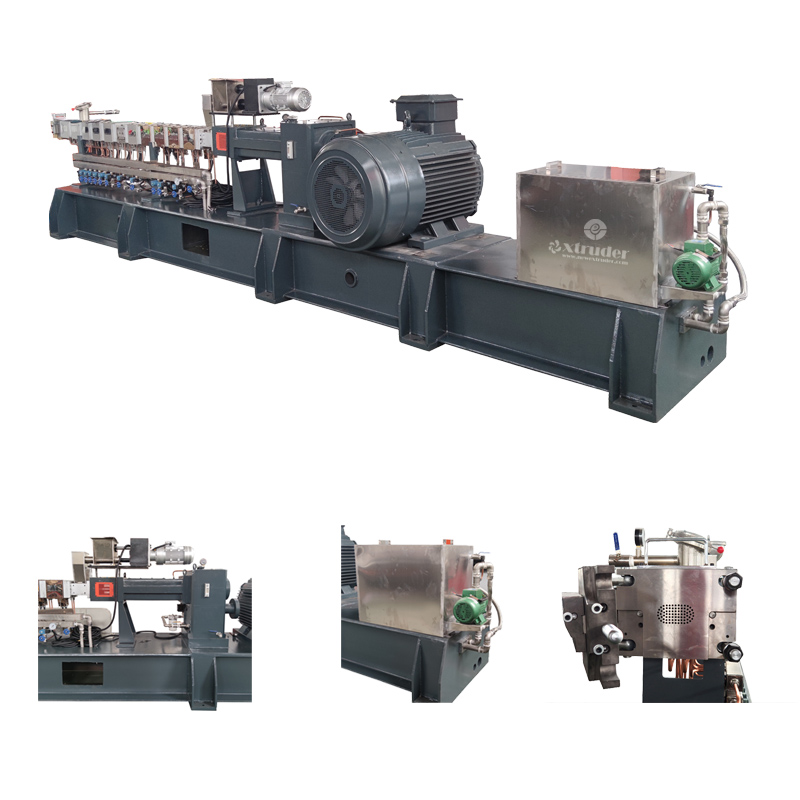

SHJ52D TWIN SCREW EXTRUDER-01

Purpose:

This twin screw plastic extruder is high torque and high screw speed by 600rpm,

This plastic extruder is for color master batch granules making.

it’s also could be make TPR, TPU elastomer products particles making.



  • Main motor: 110Kw
  • L/D: 48:1

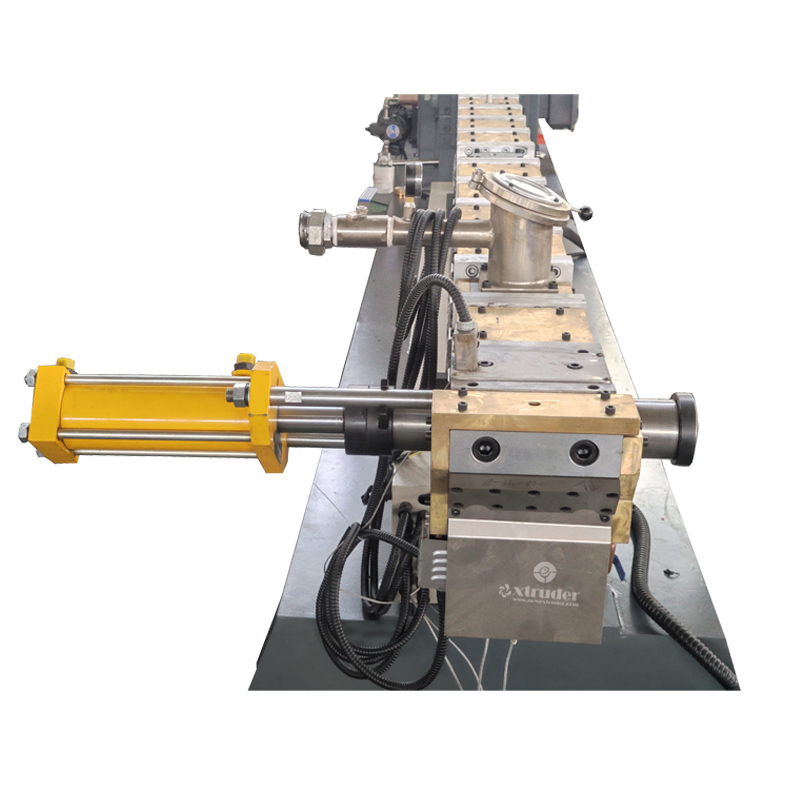

  • SHJ52D TWIN SCREW EXTRUDER-02
  • far-infrared (Far IR) heater

far-infrared heaters

  • Gearbox type: D with oil cooling system for gearbox(transmission case/compound box)
  • SHJ52D TWIN SCREW EXTRUDER-04
  • One set of Vacuum system (one vacuum chamber) for barrels
  • One set of Water Cooling system for barrels set one the machine basement;

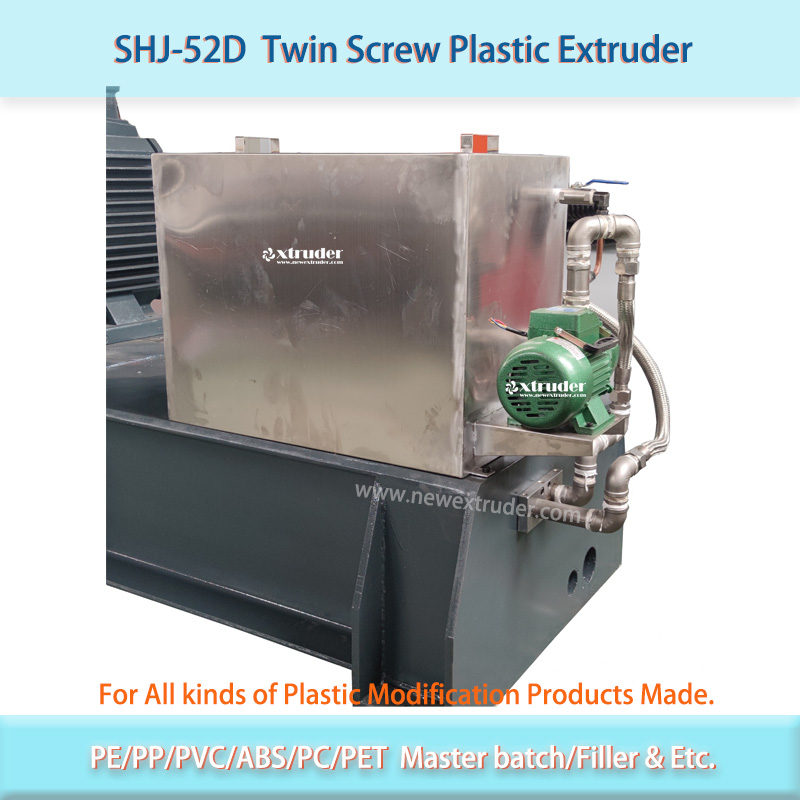

  • SHJ52D TWIN SCREW EXTRUDER-05
  • Suspand design die head, automatic screen change with hydraulic workstation

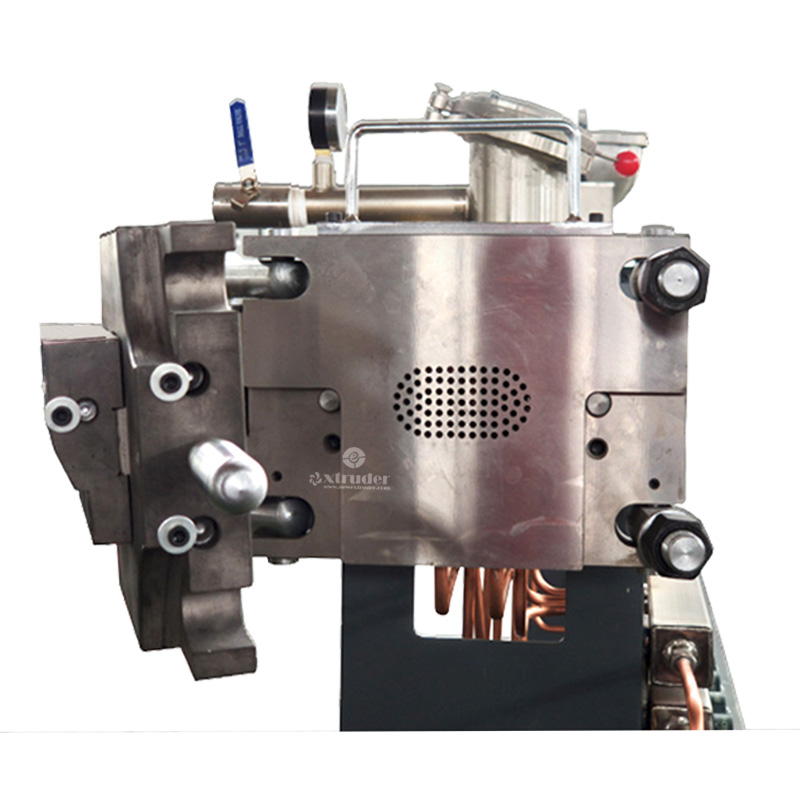

SHJ52D TWIN SCREW EXTRUDER-03

Process

Representative materials

Mixing nature-changing

PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc.

PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc.

Filling nature-changing

PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder

ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide.

PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder

Functional machine pellets

PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets

PE,PP,PS, etc+ starch: de-composing machine pellets

PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets

PE,EVA=ABS etc+ carbon black: black machine pellets

Colored machine pellets

PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary

Intensified glass fibers and carbon fibers

PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc.

Various cables

HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings,

PE peroxide silicon alkyl crossing cables: radialization crossing cables

Special materials

EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material

Reaction extruding

Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc.

Exhausting and volatilization

Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene

Powder paint

Polyester, ring oxide, lactide, polyurethane, acrylate
