EVA Titanium powder added Photovoltaic PV membrane granules extruder large output capacity plasitc extruder

SHORT DESCRIPTION:

EVA Titanium powder added Photovoltaic PV membrane granules extruder large output capacity plasitc extruder

  • Product Detail
  • Our machine can process the following materials:
  • Product Tags

EVA Titanium powder added Photovoltaic PV membrane granules extruder large output capacity plasitc extruder

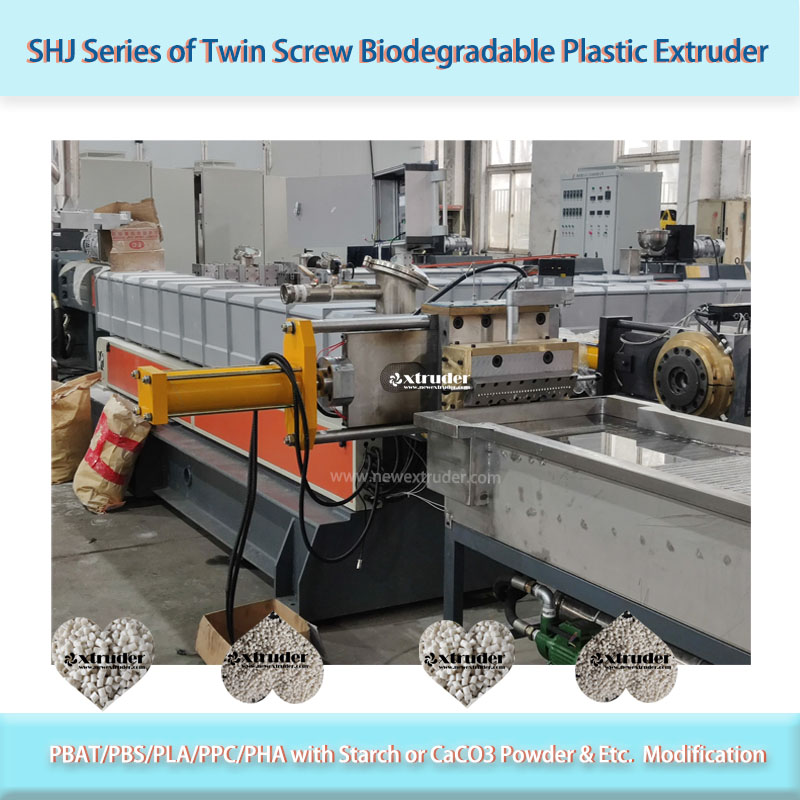

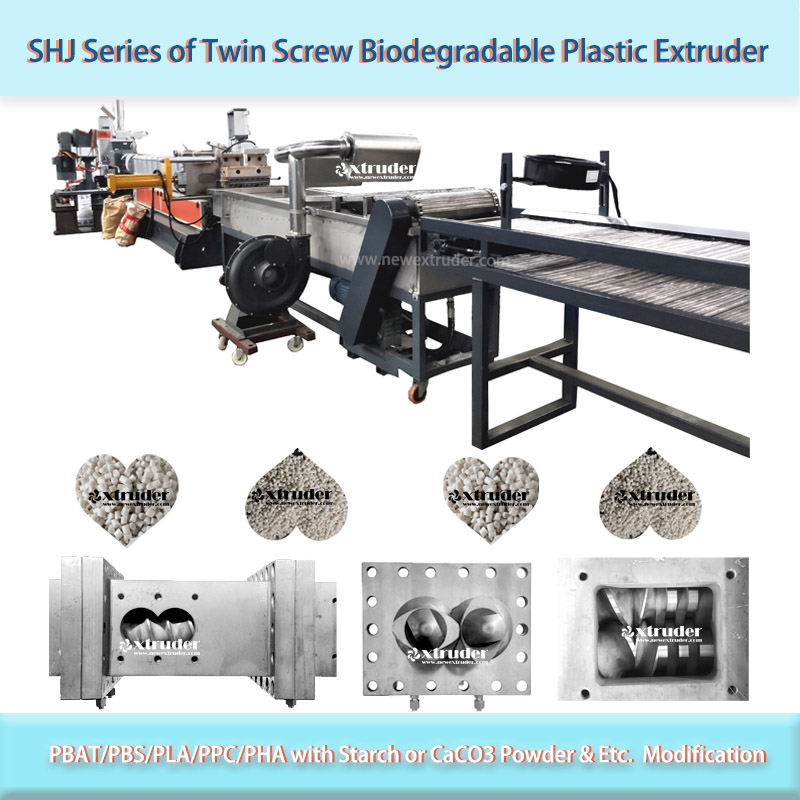

Application: This twin screw extruder is for EVA+Titanium powder granulation for Photovoltaic (PV) membrane granules making.

Also it could be used on other special request particle made.

SHJ95B
L/D ratio: 52:1
Main motor power: 400KW, controlled by inverter;

Equipped Vector ( Loss in Weighter feeding system) PLC+Touch Screen, side feeder, water bath belt conveyor system, air cooling belt convoying system, pelletizer, vibrating sieve, particle transferring system and Silo;


Process

Representative materials

Mixing nature-changing

PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc.

PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc.

Filling nature-changing

PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder

ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide.

PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder

Functional machine pellets

PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets

PE,PP,PS, etc+ starch: de-composing machine pellets

PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets

PE,EVA=ABS etc+ carbon black: black machine pellets

Colored machine pellets

PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary

Intensified glass fibers and carbon fibers

PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc.

Various cables

HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings,

PE peroxide silicon alkyl crossing cables: radialization crossing cables

Special materials

EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material

Reaction extruding

Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc.

Exhausting and volatilization

Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene

Powder paint

Polyester, ring oxide, lactide, polyurethane, acrylate
